The Turbosmart StraightGate50 is the highest-flowing external wastegate available, setting a new standard in performance. Featuring a zero-offset butterfly-style design, the StraightGate50 provides massive flow, nearly linear control, and unmatched boost management throughout its entire operating range.

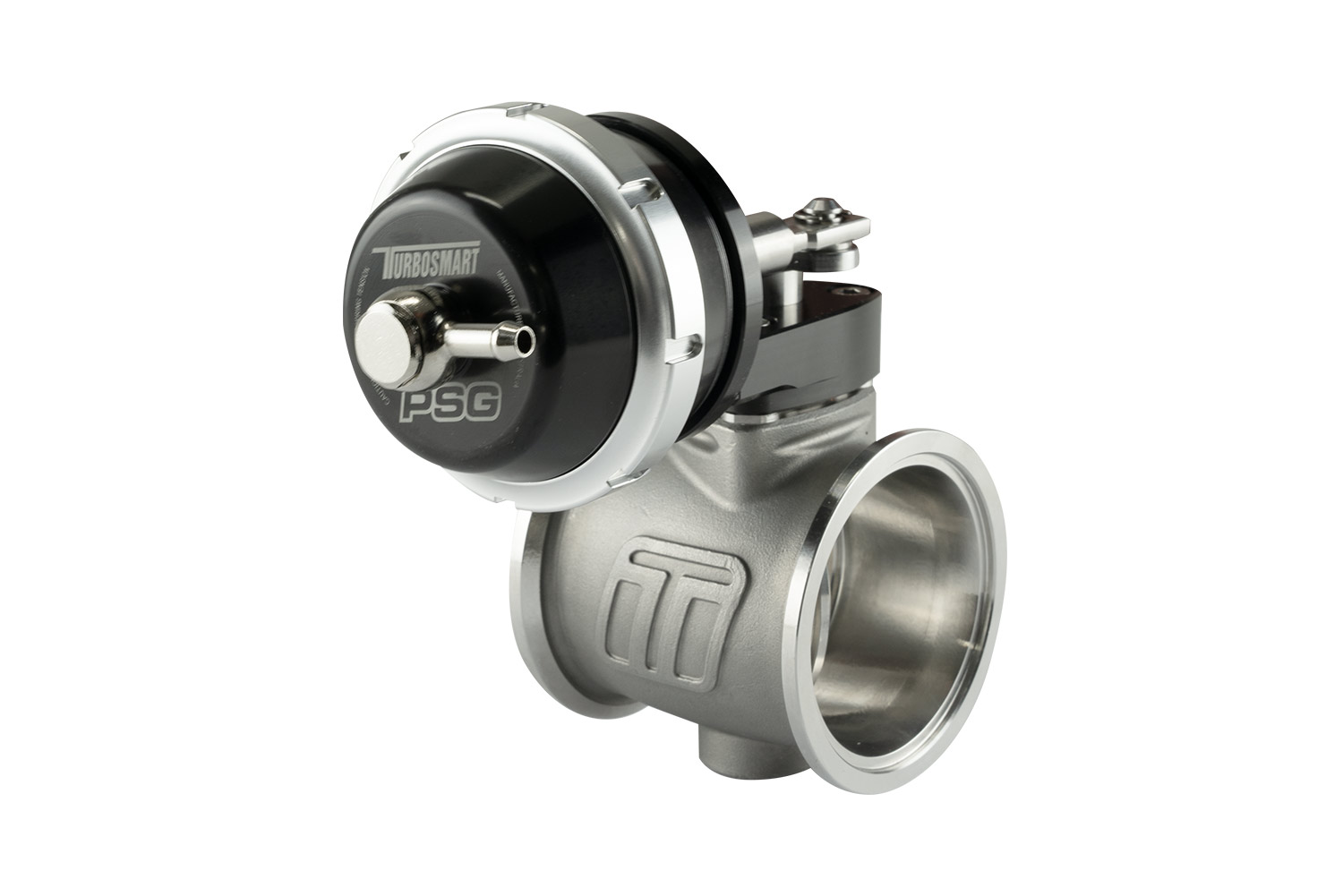

The Vacuum-Based Pneumatic StraightGate50 builds on the success of the award-winning eSG50, simplifying operation with a vacuum-based actuator. The wastegate’s self-balancing design enables a broad tuning window, making it highly versatile. Vacuum-based boost control also facilitates advanced gate strategies, such as fully opening the gate during cold starts to meet emissions standards. Additionally, it can integrate seamlessly with factory boost control systems, particularly in applications retrofitting from internal wastegate actuators. The GenV vacuum-based actuator comes with both single and twin-port control options, offering easy connection or boost-assist functionality. Simple to use, the StraightGate50 delivers exceptional performance, flow, and advanced features.
Designed from the ground up and rigorously validated in-house, the StraightGate50 achieves a new level of flow and control never seen in any wastegate. Its zero-offset butterfly valve is exposed to equal exhaust drive pressure on both sides, allowing it to pivot centrally for self-balancing operation. This self-balancing feature reduces the effort required to actuate against high drive pressures, enabling a wider tuning window regardless of how the valve is controlled. The increased flow efficiency comes from the straight-through valve design, which allows exhaust gases to flow unimpeded—unlike the 90-degree turn required by traditional poppet-style valves.
Available in
Electronic eSG50 StraightGate50
Pneumatic (Boost-Based) pSG50 StriaghtGate50
Pneumatic (Vacuum-Based) pSG50v StraightGate50
Features
50mm (1.97in) Butterfly Style Zero-Offset Valve
383.9 CFM / 10.87m3 per minute flow
Stainless Steel (630) Butterfly and shaft
Stainless Steel (347) Main Body
Stainless Steel (Heat Treated 431) V-Band Clamps
Aluminium (6262 T6 Anodised) Bracket & Actuator
Turbosmart unique Locking Collar Ring
Base Spring Options from 6psi to 42psi
Suitable for Single or Twin Port Boost-Based Control
Stainless Steel (N60) Linkages & Control Arm
